1990101
Sensor Waschstation

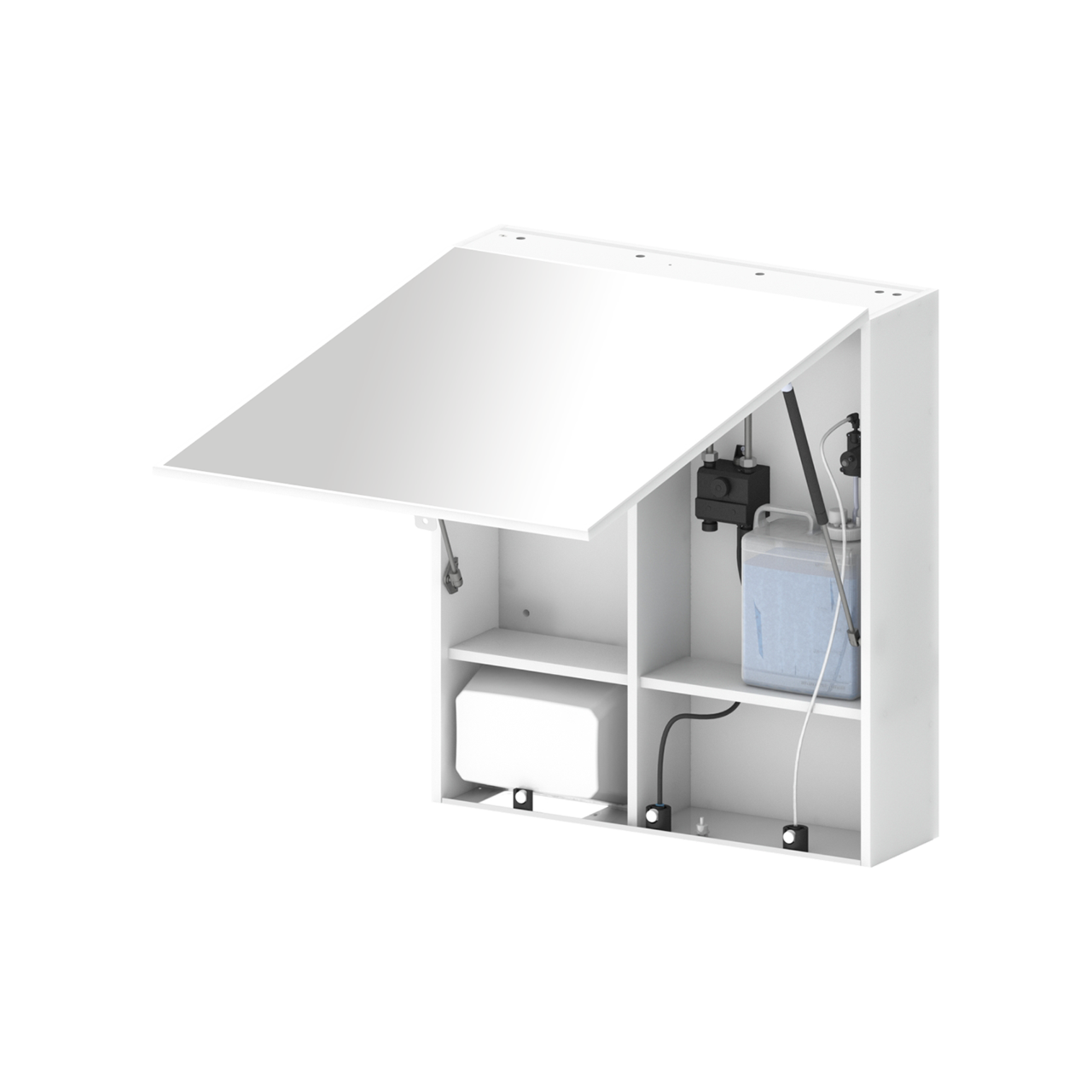

Sanitary mirror cabinet including electronic faucet, soap dispenser and hand dryer, mains operation
Sensor wash station complete sanitary cabinet with lockable mirror, incl. High-speed hand dryer, sensor mixer tap and sensor soap dispenser, run by transformer
GTIN
4260146239689
Properties
Settings
Technical details
Packing information
Actuation
Infrared sensor
Connection
G 1/2, wall connection
Flow rate (3 bar)
3,9 l/min, water saving options available
Soap dosage
1,2 - 1,6 ml
Operation
Solenoid valve + air motor + peristaltic pump
Installation
wall mounted
Power supply
Hand dryer: 110 / 220V AC, 50-60 Hz, 1.0 kW safety plug
Faucet + soap dispenser: 12V transformer 100-240V, 50-60 Hz
Color
White
Sensor range
Faucet: self-adjusting
Adjustable from 30 - 300 mm
Soap dispenser: 150 mm
Hygiene flush
24 hours after the last use, for 30 seconds, adjustable 12-72 hours / off
Security off
90 seconds
adjustable with remote control
Cleaning mode
60 seconds off
Power button remote control
Delay in / Delay out
Yes
Soap pipe priming
Yes
Connection size
G 1/2
DN Size
DN 15
Working pressure
0,5 - 8,0 bar
Hot water temperature
70 ° C, short-term higher thermal disinfection
Soap viscosity
100 - 3800 cPs
pH value soap
5,5 - 8,5
Certificates
CE; Hyigenezertifikat Polen;
Measure A (mm)
865
Measure B (mm)
285
Measure C (mm)
974
Weight (kg)
50,000
