1962050

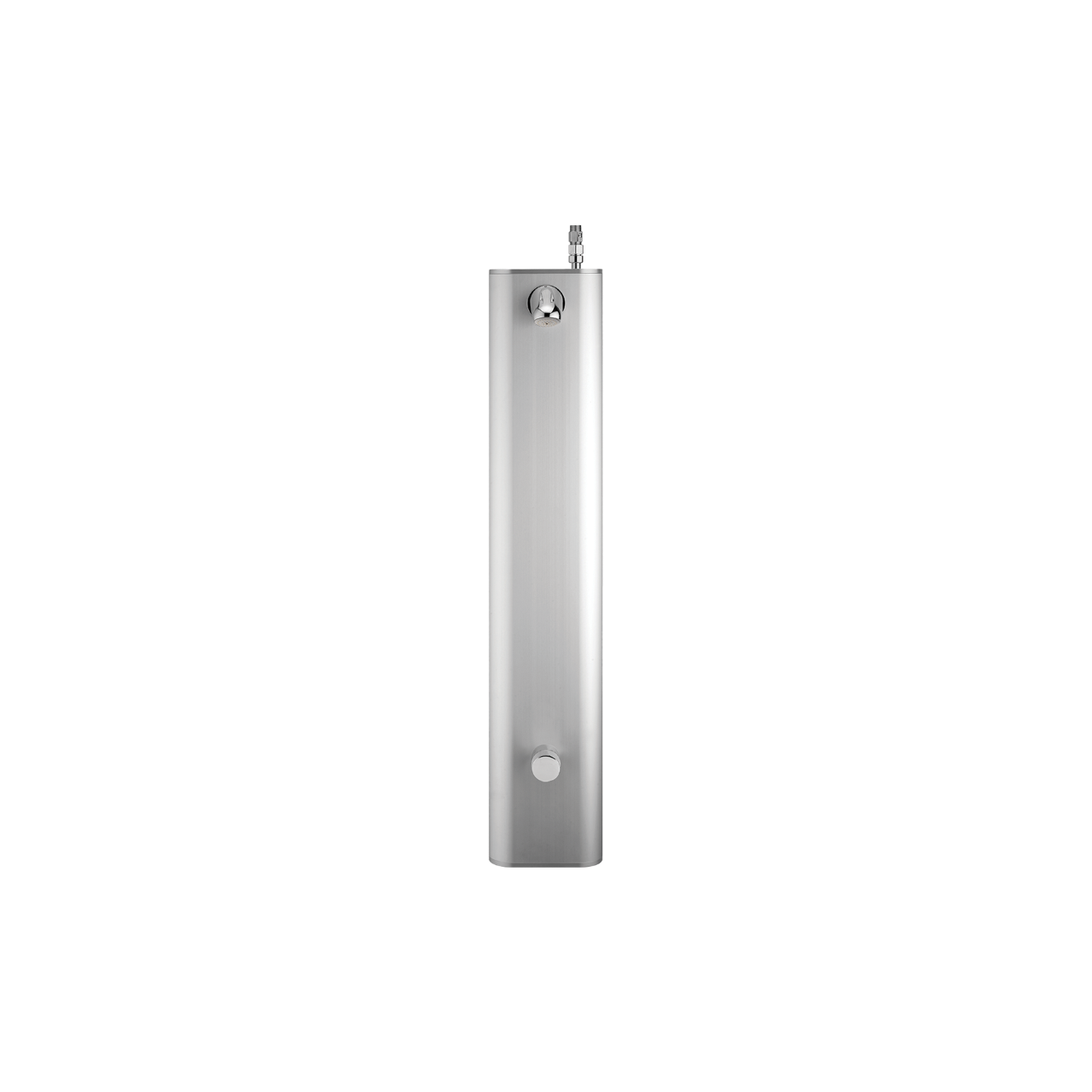

Element Duschpaneel, Self-Closing

Self-closing shower panel for wall fixation

Element Duschpaneel, Self-Closing - Shower panel with self-clsoing-valve and indiviual timing


GTIN

4260146232970

Properties
Settings
Technical details
Packing information
Actuation
Push button activation
Connection
G 1/2, connection from above
Flow rate (3 bar)
9 l/min
Running time
ca. 25 seconds, pre-set
Temperature control
cold or premixed water
Operation
Self-closing cartridge
Installation
wall mounted
Color
Aluminium
Running time
adjustable from 10 - 40 seconds with regulating screw
Connection size
G 1/2
DN Size
DN 15
Working pressure
0,5 - 5 bar
Hot water temperature
70 ° C, short-term higher thermal disinfection
Stop valve
Yes
Certificates
Hyigenezertifikat Polen;
Measure A (mm)
1115
Measure B (mm)
205
Measure C (mm)
153
Weight (kg)
7,200
Related to

3515050

Thermostatic pre-mixer, 3/8"

3510060B

Hose connection set 3/8", for thermostatic premixer

Spareparts

5951209

Vandal-proof shower head, 9 l/min.
